VANE-WHEEL WATER METERS TO R100
The main elements of the counting mechanism: a set of gears, drums and the counter housing. The mechanism is attached to the body with a mounting ring which is sealed after the verification process. Meter rotor is powered by the water flow pushing it around the perimeter. Counter adds the volume of water measured. The control device is protected from tampering with the seal. Thanks to the special design of the rotor bearings and the selection of quality materials, resistant to corrosion and abrasion, we manage to achieve high durability of the water meter.

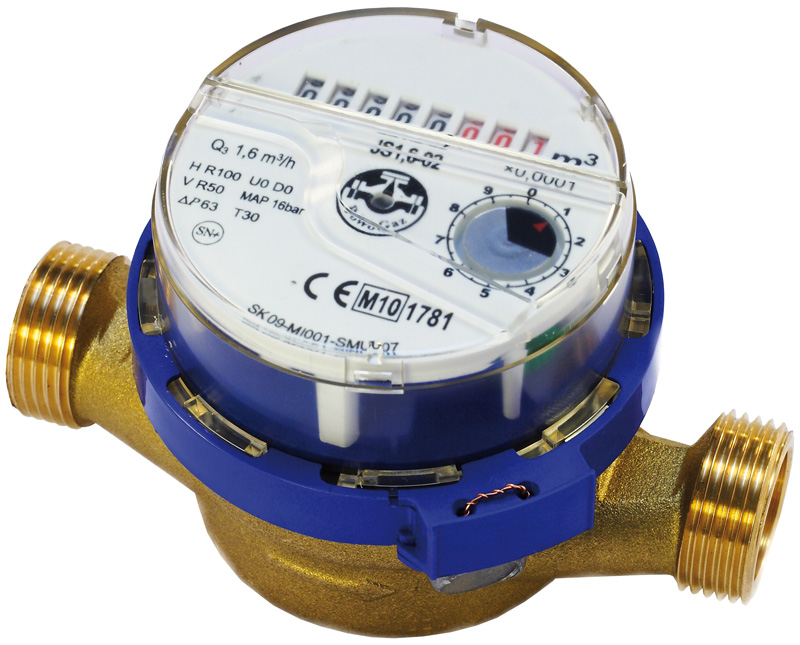

JS SMART+ - VANE-WHEEL SINGLE-JET DRY WATER METERS
(DN15-20)
Features & Advantages
- Resistant to strong external magnetic field
- Preequipped for installation of: radio module for communication in the Wireless M-Bus, impulse module and M-Bus module
- Readings reliability – fulfils the newest metrological requirements of MID
- Easy reading of the water meter counter
- Hermetic counter (with increased tightness) resistant to steaming
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Protection against mechanical tampering
- Protection limiting the results of water freezing
- Outlet port of water meter housing suitable for optional installation of a return valve
- Double-sided rotor bearing.

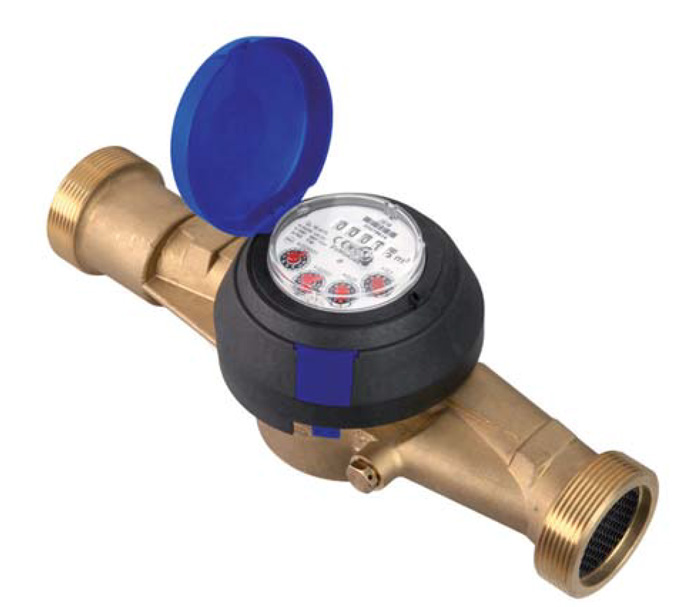

VANE-WHEEL SINGLE-JET DRY WATER METERS
(DN25-40)
Features & Advantages
- Preequipped for installation of: radio module for communication in the Wireless M-Bus, impulse module (not
applicable to JS-NK and JS-NKP) - Easy reading of the water meter counter
- Hermetic counter (with increased tightness) resistant to steaming
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Protection against mechanical tampering
- Double-sided rotor bearing

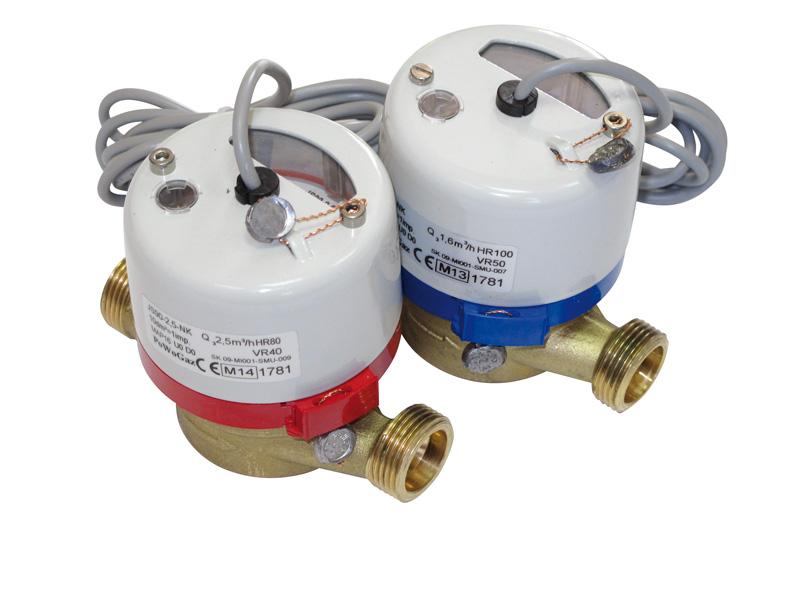

VANE-WHEEL SINGLE-JET DRY WATER METERS
(DN15-20)
Features & Advantages
- Readings reliability – fulfils the newest metrological requirements of MID
Adapted to operation in AMR systems - Easy reading of the water meter counter
- Hermetic counter (with increased tightness) resistant to steaming
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Protection against mechanical tampering
- Protection limiting the results of water freezing
- Double-sided rotor bearing
- Outlet port of water meter housing suitable for optional installation of a return valveg.
PROPELLER WATER METERS
Propeller water meters construction can be divided to: body, measurement mechanism and counting mechanism. The water flow activates the impeller mounted in a measuring mechanism. The rotor is positioned coaxially or perpendicular (vertical) to the duct system of the body and through the screw-worm wheel drives the magnet located on the axis. Through the magnetic coupling the water volume is shown on the counting mechanism.

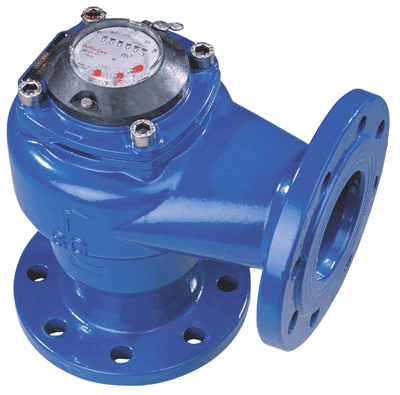

WELL WATER METERS (WOLTMAN) WITH VERTICAL ROTOR AXIS
(DN50-150)
Features & Advantages
- Preequipped for installation of radio module for communication in the Wireless M-Bus and impulse module (not applicable to versions with NK, NO, NKO and NKOP transmitters)
- Wide measuring range
- Low starting rate
- Removable measuring panel
- Double-sided rotor bearing
- Easy reading of the water meter counter
- Hermetic counter – IP68 on request ****)
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Readings reliability
- On request possibility of another drilling

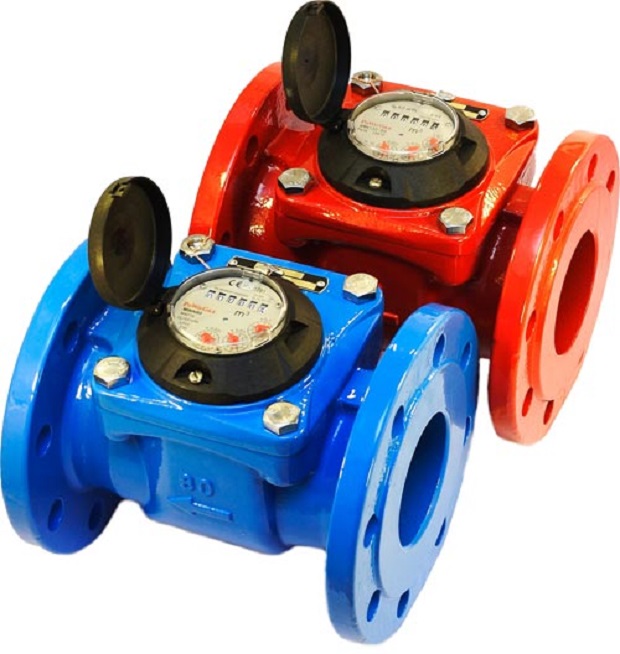

WOLTMAN WITH HORIZONTAL ROTOR AXIS MWN, MWN 130;NK
(DN40-500)
Features & Advantages
- Preequipped for installation of: radio module for communication in the Wireless M-Bus and impulse module (not applicable to water meters for hot water and versions with NK, NO, NKO and NKOP transmitters)
- Wide measuring range
- Low starting rate
- Removable measuring panel
- Double-sided rotor bearing
- Easy reading of the water meter counter
- Hermetic counter – IP68 on request ****)
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Readings reliability
- In special option housing with connection for pressure measurement DN50-300 (cold and hot water)
- Optional version for demineralised water DN40-125 (cold and hot water)
- On request possibility of another drilling
SPECIAL USE WATER METERS
Compound water meters are suitable to work with different flow volumes. Hydrant water meters can be connected to both underground and over ground hydrants. Irrigation water meters are used to measure the water abstracted from rivers or reservoirs. All of the special-purpose water meters are equipped with double-sided bearing impeller and can be read easily from the register.

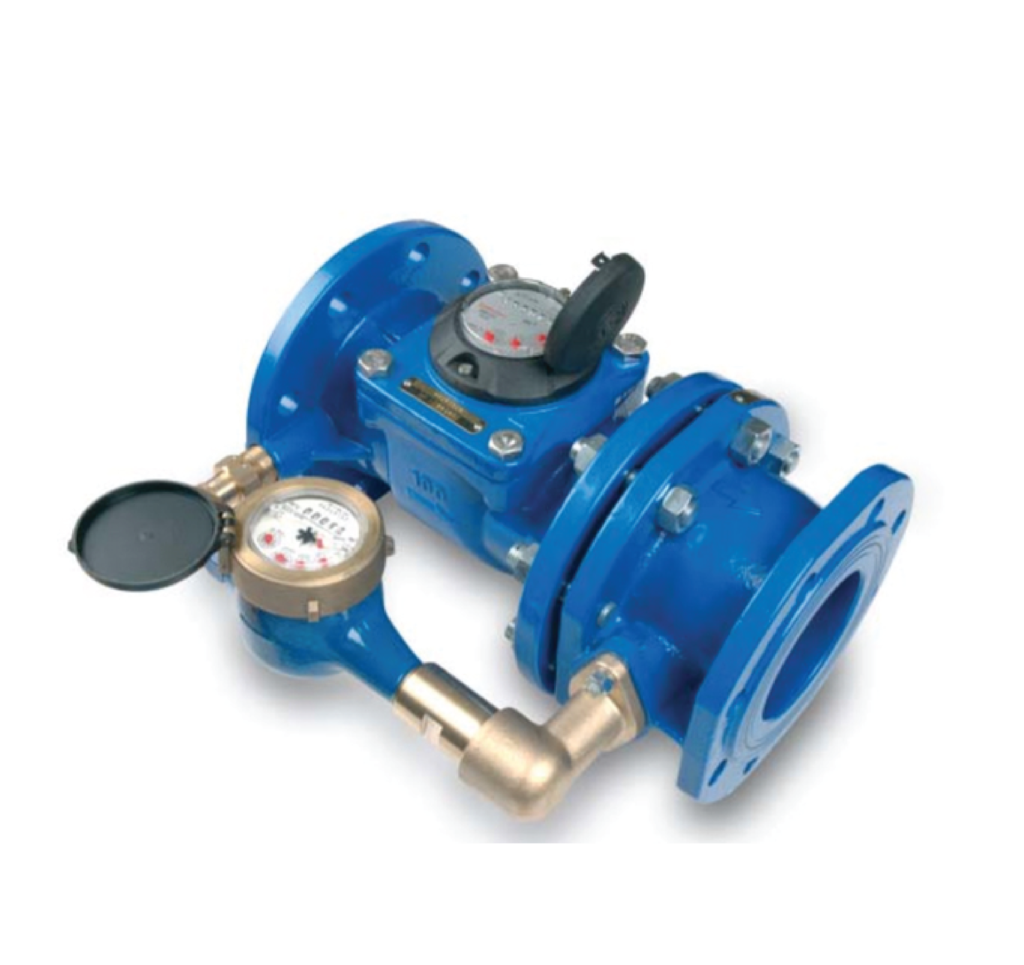

COMPOUND WATER METERS WITH THE SPRING VALVE (DN50-150)
MWN /JS-S, MWN/WS-S, MWN/JM-S, MWN/WM-S; -NK; -NKP
Features & Advantages
- Preequipped for installation of: radio module for communication in the Wireless M-Bus and
impulse module (not applicable to versions with NK transmitters) - Wide measuring range
- Low starting rate
- Removable measuring panel
- Double-sided rotor bearing
- Easy reading of the water meter counter
- Hermetic counter – IP68 on request *)
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Readings reliability

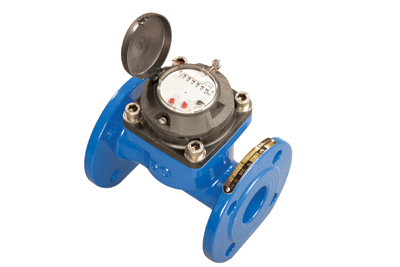

METERS FOR IRRIGATION WATER WI, -NK; -NKP; -01; 02; 03; 04 (DN40-250)
Features & Advantages
- Easy reading of the counter
- Hermetic counter, IP68 (optional)
- Counter mechanism with blockade against multiple rotating
- Double sided axle bearing

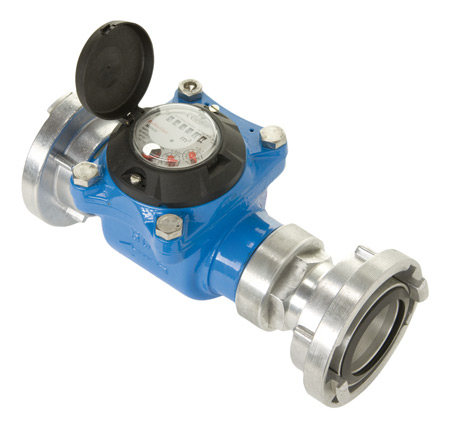

PROPELLER WATER METERS WITH VERTICAL (MH-01) AND HORIZONTAL (MWN50-GH); ROTOR AXIS - VANE-WHEEL SINGLE-JET WATER METERS (JSH)
Features & Advantages
- Mobility of measurements
- Easy reading of the water meter counter
- Hermetic counter
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Double-sided rotor bearing

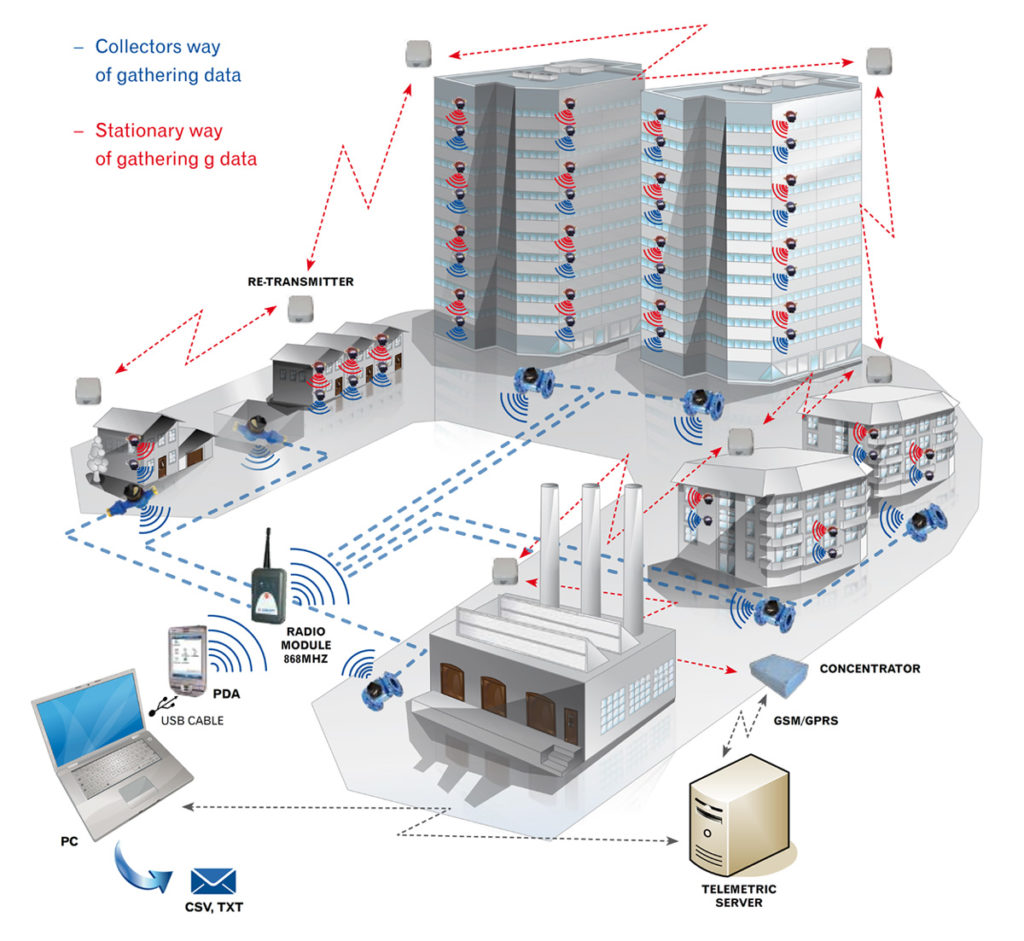

WIRELESS WATER METERS READING SYSTEM
For the readings of indications of heat meters, water meters and heat cost allocators mounted in residential buildings, public or industrial buildings. The system operates based on a communication protocol according to PN-EN 13757 Wireless M-Bus, frequency: 868 MHz, reading mode – unidirectional (Wireless M-Bus T1), configuration mode – bidirectional. It is possible to configure the transmission frequency in the range of selected days and hours.
Features & Advantages
- Preequipped for installation of: radio module for communication in the Wireless M-Bus and
impulse module (not applicable to versions with NK transmitters) - Wide measuring range
- Low starting rate
- Removable measuring panel
- Double-sided rotor bearing
- Easy reading of the water meter counter
- Hermetic counter – IP68 on request *)
- Counter mechanism with blockade against multiple rotating, at rotation angle more than 360°
- Readings reliability
